Various carbide powders / Nitride powders, etc.
Various kinds of carbide powders / Various kinds of carbonitride powders
To see the whole table, scroll sideways.
| Type | Composition | Item | Particle size(μm) | TC(%) | FC(%) | N(%) | O(%) | Fe(%) |
|---|---|---|---|---|---|---|---|---|
| Chromium carbide powder | Cr3C2 | OR15 | 1.0 to 2.0 | 13.00 to 13.50 | ― | ≤0.10 | ≤0.80 | ― |
| Vanadium carbide powder | VC | OR10 | ≤1.2 | ≥16.50 | ≤0.50 | ≤0.50 | ≤0.70 | ≤0.10 |
| Titanium carbide powder | TiC | OR06 | 0.6 to 1.1 | 18.00 to 19.50 | ≤0.30 | ≤0.30 | ≤2.00 | ≤0.02 |
| Titanium carbonite ride powder | TiC0.5N0.5 | 5OR08 | 0.7 to 1.0 | 9.70 to 10.00 | ≤0.40 | 10.40 to 11.80 | ≤1.00 | ≤0.10 |
| 5OR12 | 1.0 to 1.2 | 9.70 to 10.00 | ≤0.40 | 10.30 to 11.80 | ≤1.00 | ≤0.10 | ||
| 5MP15 | 1.1 to 1.8 | 9.70 to 10.00 | ≤0.30 | 10.20 to 11.30 | ≤1.00 | ≤0.10 |

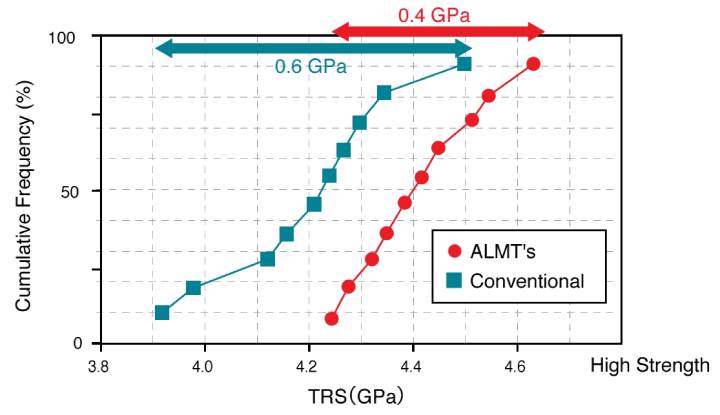

- Transverse Rupture Strength of Cemented Carbide Using Our Cr3C2 Powder and VC Powder
-
- Tungsten Technical information
