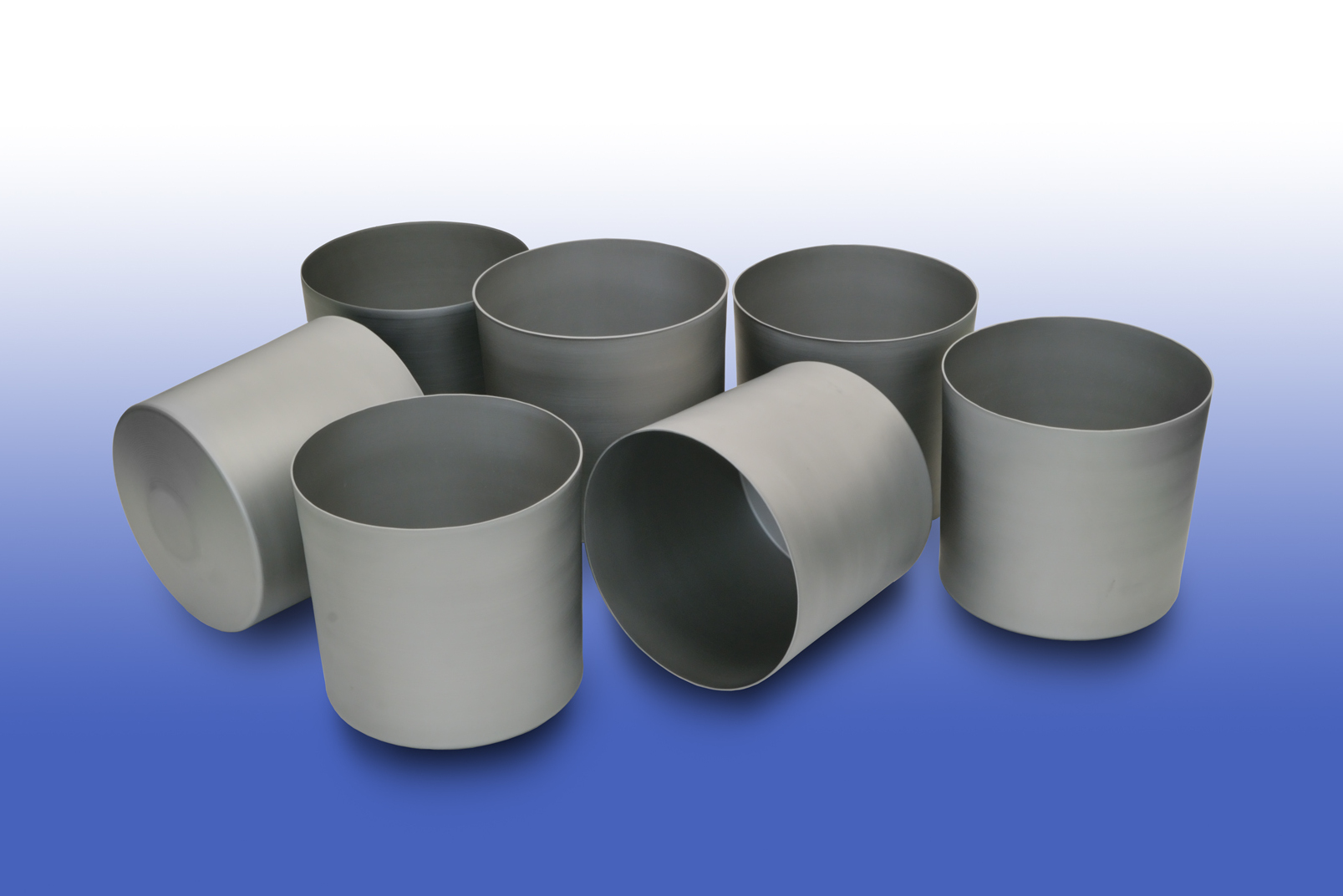

Crucibles for crystal growth
Ideal for growing various types of single crystals
We provide both sintered and drawn products based on the single crystal growth method. Additionally, we can manufacture ultra-large crucibles (D600 x H600mm), which are typically challenging to produce. The high density and uniform metallurgical structure of these crucibles ensure longevity even after repeated use, making them widely used, particularly as crucibles for growing single crystal sapphire.
| Applications | For growing single crystal sapphire, etc. |
|---|
スクロールで表全体をご覧いただけます。
| Materials | Size | ||
|---|---|---|---|
| Outsize diameter (mm) × Height (mm) |
Thickness (mm) | ||
| Sintered products | Molybdenum | (max)D400×H400 | － |
| Tungsten / molybdenum alloys | (max)D300×H300 | － | |
| Tungsten | (max)D200×H200 | － | |
| Spinning product | Molybdenum | (max)D600×H600 | (max)15.0、(min)1.0 |
* Please contact us for specifications that exceed those listed above.
