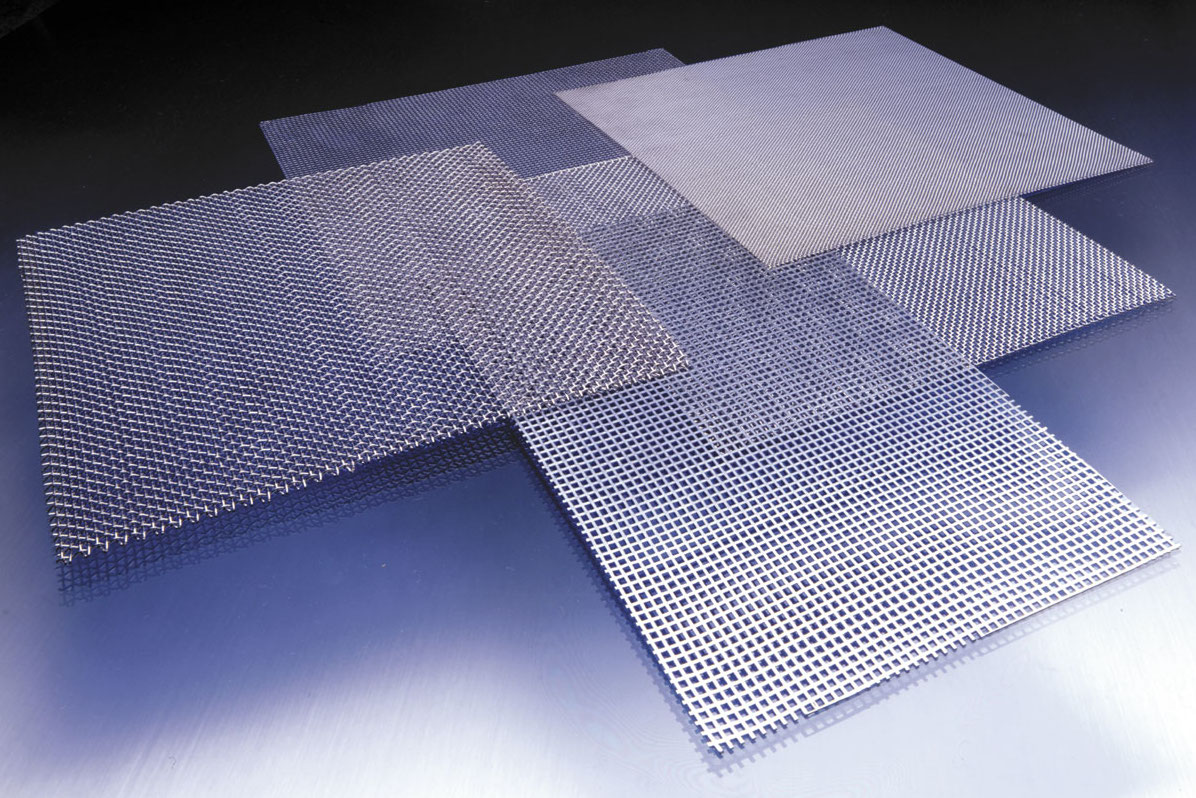

Meshes
For venting and preventing welding of baked products
Furnace components including setters and heaters for venting gases generated during the sintering of ceramics and other materials.
| Applications | Sintering jigs for high-temperature furnaces, etc. |
|---|
Materials guide
スクロールで表全体をご覧いただけます。
| Type | Features |
|---|---|
| MOP, MOS (Molybdenum materials for general use) |
It has a high melting point and excellent high-temperature strength. |
| TT-TEM™ (High-temperature-resistant Molybdenum materilal) |
It is resistant to deformation even at high temperatures, and retains its flexibility. |
| Ｗ (Tungsten materials for general use) |
It exhibits excellent corrosion resistance at room temperature. |
Manufacturable range of conventional flat meshes
| Type | MOS | MOP | W |
|---|---|---|---|
| Purity (%) | ≥99.95 | ≥99.95 | ≥99.95 |
| Wire diameter (mm) | Φ0.12 | Φ0.35 | ≥Φ0.011 |
| Mesh | #50 | #24 | ≤#520 |
| Size (mm) * | ～□400 | ～□400 | ～□300 |
* Please contact us for sizes larger than □400 mm.
Manufacturable range of bending meshes
| Type | MOS | MOP | TT-TEM™ |
|---|---|---|---|
| Purity (%) | ≥99.95 | ≥99.95 | ≥99.00 |
| Wire diameter (mm) | Φ0.12 | Φ0.35 | Φ0.5 |
| Mesh | #50 | #24 | #16 |
| Sizes (mm) * | ～□400 | ～□400 | ～□400 |
* Please contact us for sizes larger than □400 mm.
