Display of wheel size and shape

Example of wheel size label

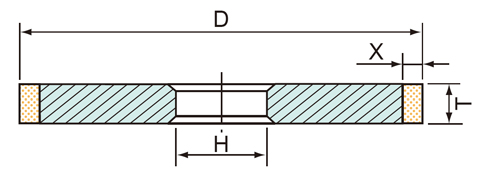

Straight wheel
Φ150Outside
diameter
5TGrain layer
width
3XGrain layer
thickness
Φ25.4HMounting hole
diameter
Straight wheel

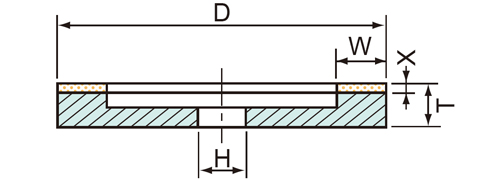

Cup wheel
Φ150Outside
diameter
3WGrain layer
width
5XGrain layer
thickness
Φ40HMounting hole
diameter
Cup wheel

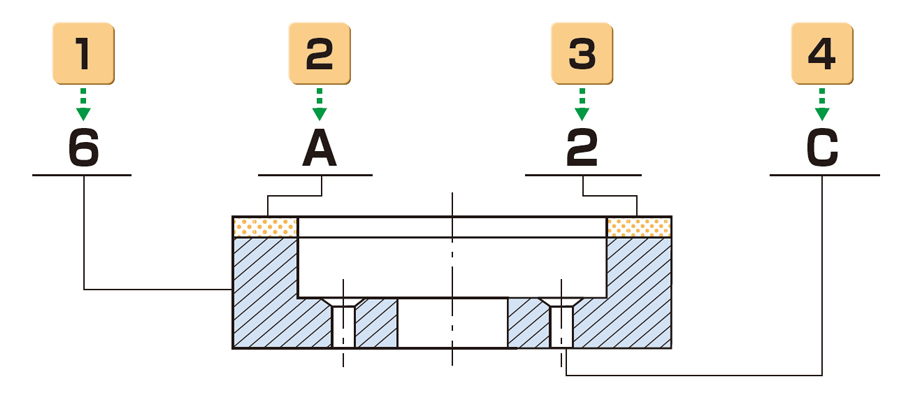

Identification Method of Wheel shape

The shape labelling method of the super abrasive wheel is specified by "Japan Industrial Standard JIS B 4141."

Identification Method of Wheel shape

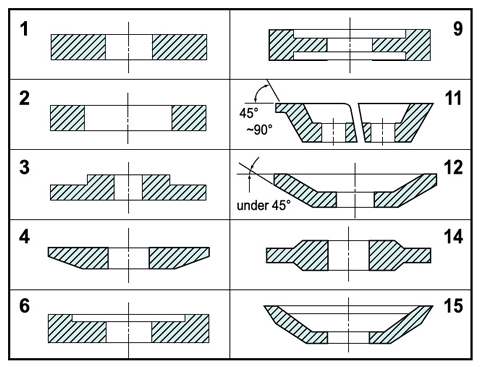

1Standard Body Shape
Standard Body Shape

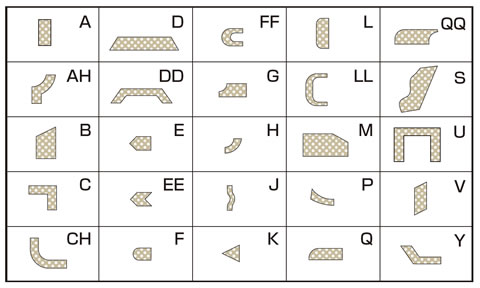

2Cross Sectional Shape of Abrasive Layer
Cross Sectional Shape of Abrasive Layer

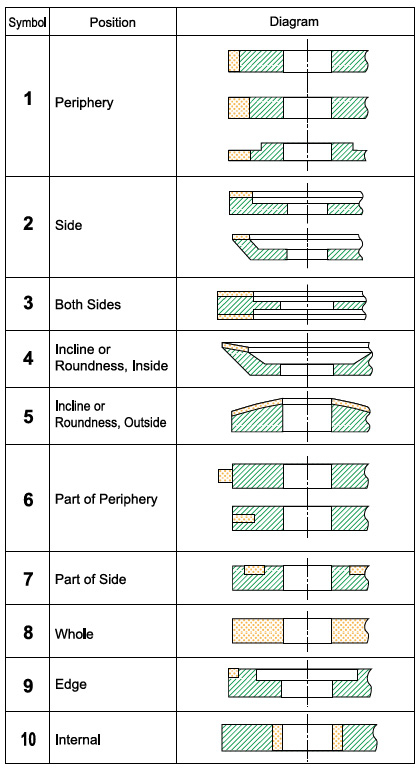

3Abrasive Layer Position & symbol Reference to B
Abrasive Layer Position & symbol Reference to B

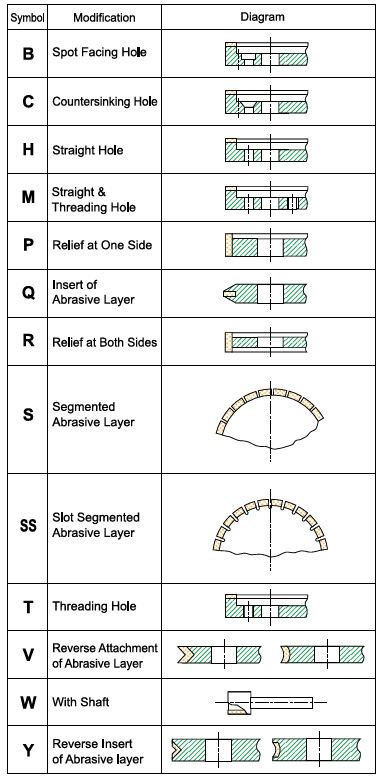

4Modification & symbol
Modification & symbol

Standard Wheel Shape 1

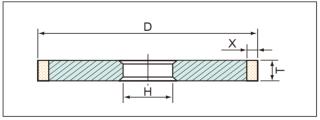

1A1Straight
  • Straight
  • Straight

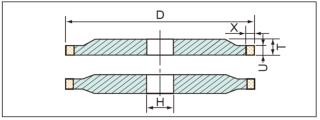

3A1/14A1Straight with Boss
  • Cutting
  • Cutting

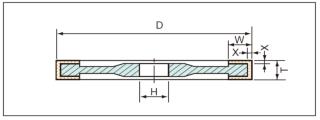

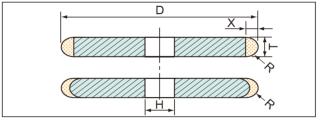

1F1/1FF1Straight with R
  • Straight with Boss
  • Straight with Boss

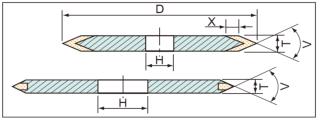

1EE1/1E6QV Face
  • Cutting Saw
  • Cutting Saw

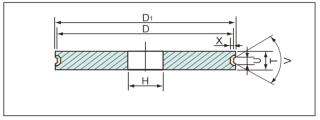

1Q1/1L1Chipbreaker

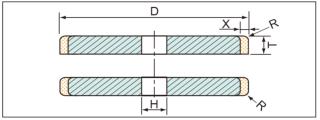

  • Straight with R
  • Straight with R

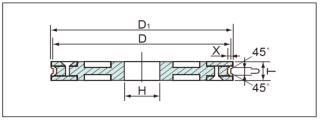

1DD6YCentering

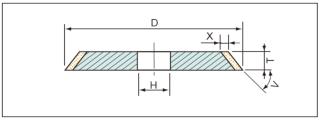

  • Straight with Angle
  • Straight with Angle

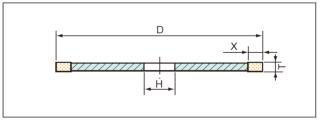

1A1RCutting
  • V Face
  • V Face

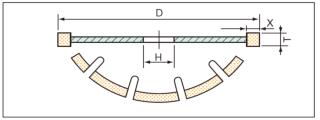

1A1RSSCutting Saw
  • One side V Face
  • One side V Face
1V1Straight with Angle
  • Chipbreaker
  • Chipbreaker

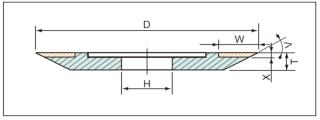

4B2One side V Face
  • U-shaped Straight
  • U-shaped Straight
9U1U-shaped Straight
  • Centering
  • Centering
1FF6Y/1EE6Y/1LL6Y/1DD6YPencil Edge
  • Pencil Edge
  • Pencil Edge

Standard Wheel Shape 2

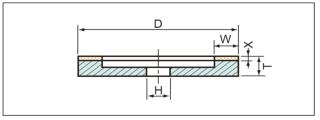

6A2Plain Cup
  • Plain Cup
  • Plain Cup

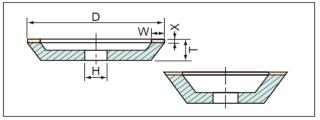

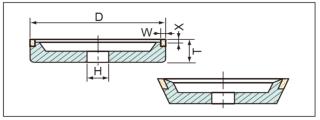

11A2/11B2Flair Cup

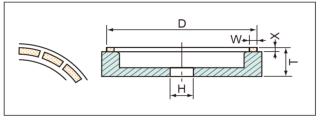

  • Segment Cup
  • Segment Cup

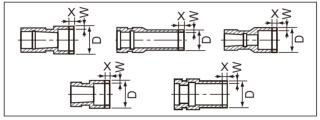

6A9/11V9Corner Cup
  • Flair Cup
  • Flair Cup
11V2SWedge-shaped Segment Cup
  • L-Shaped Flair Cup
  • L-Shaped Flair Cup

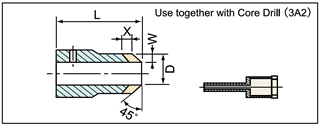

3A2Core Drill
  • Corner Cup
  • Corner Cup
3F2Curve Generator

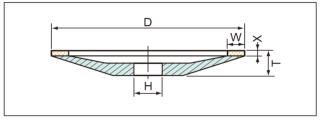

  • Dish
  • Dish
6A2SSegment Cup

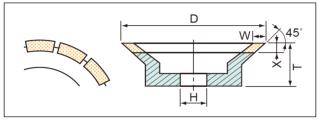

  • Wedge-shaped Segment Cup
  • Wedge-shaped Segment Cup

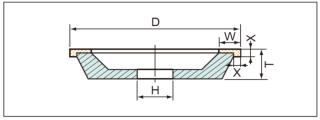

11C9/11Y9L-Shaped Flair Cup
  • Both side Cup
  • Both side Cup
12A2Dish
  • Core Drill
  • Core Drill

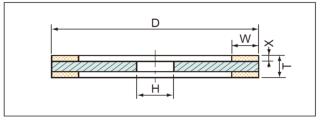

9A3Both side Cup
  • Chamfering
  • Chamfering
3V2TChamfering
  • Curve Generator
  • Curve Generator

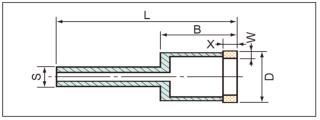

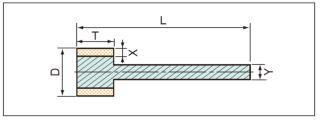

WInternal with Shank
  • Internal with Shank
  • Internal with Shank
